CNC760 Breakout Board
5min

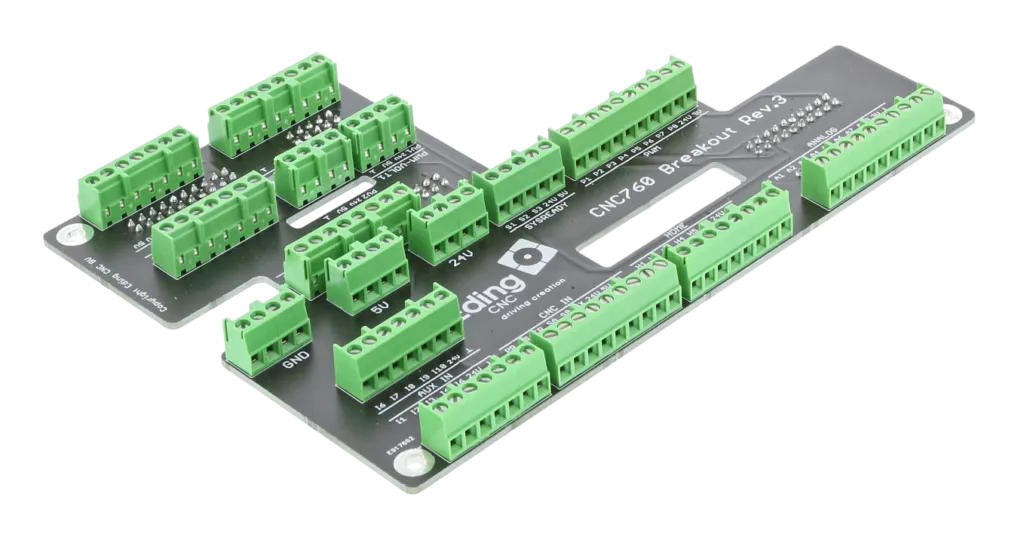

If you prefer to use separate wires to hook up your CNC760, this breakout board will help you. Simply plug this in on top of the CNC760 and start wiring your controller.
Please note that this breakout board includes connections for everything except the axes. This is available separately here: CNC760 Axis Breakout.
Purchase

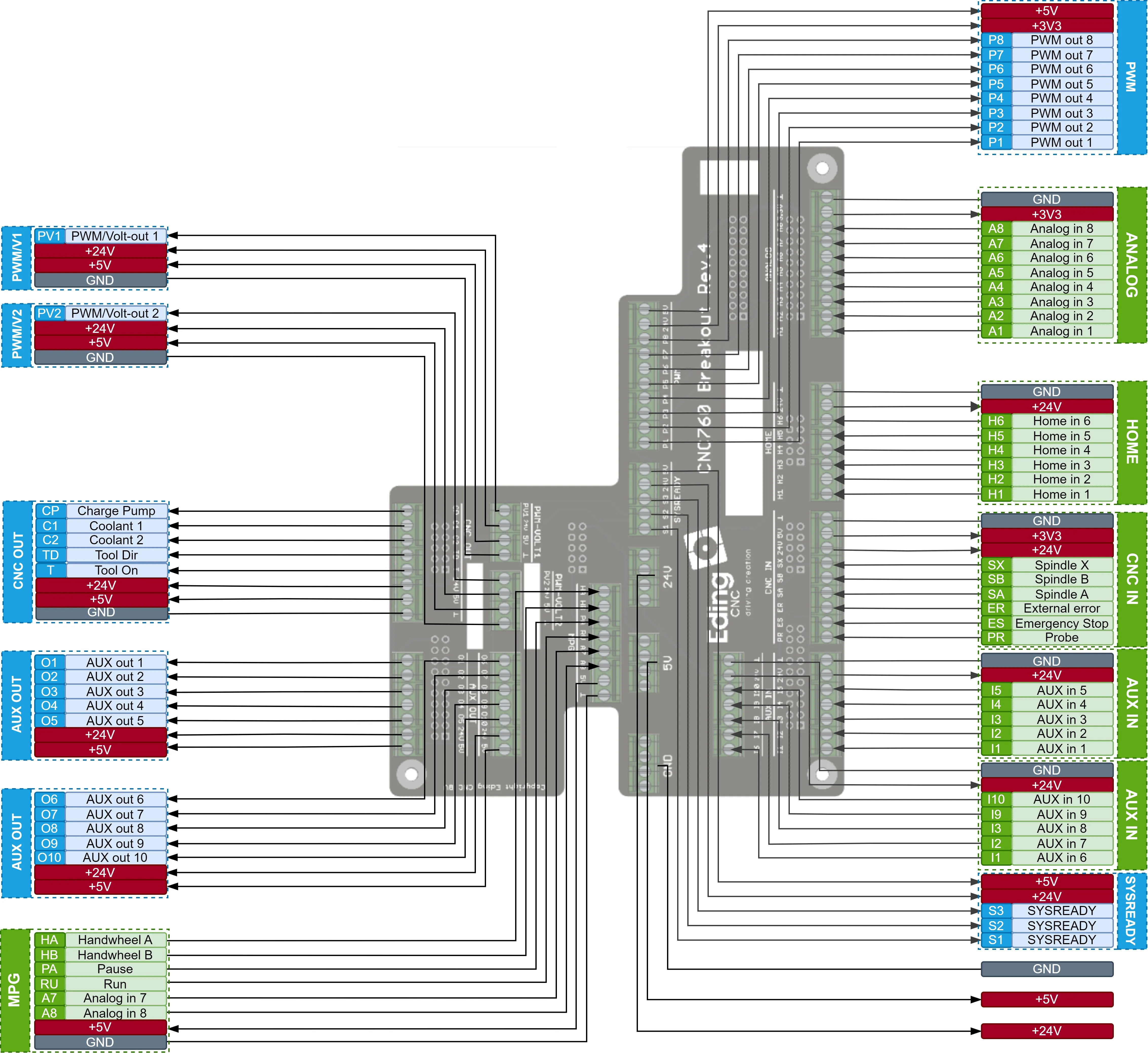

Click the image to enlarge it
Align the breakout board with the CNC760 and simply press the breakout board on top of the CNC760.

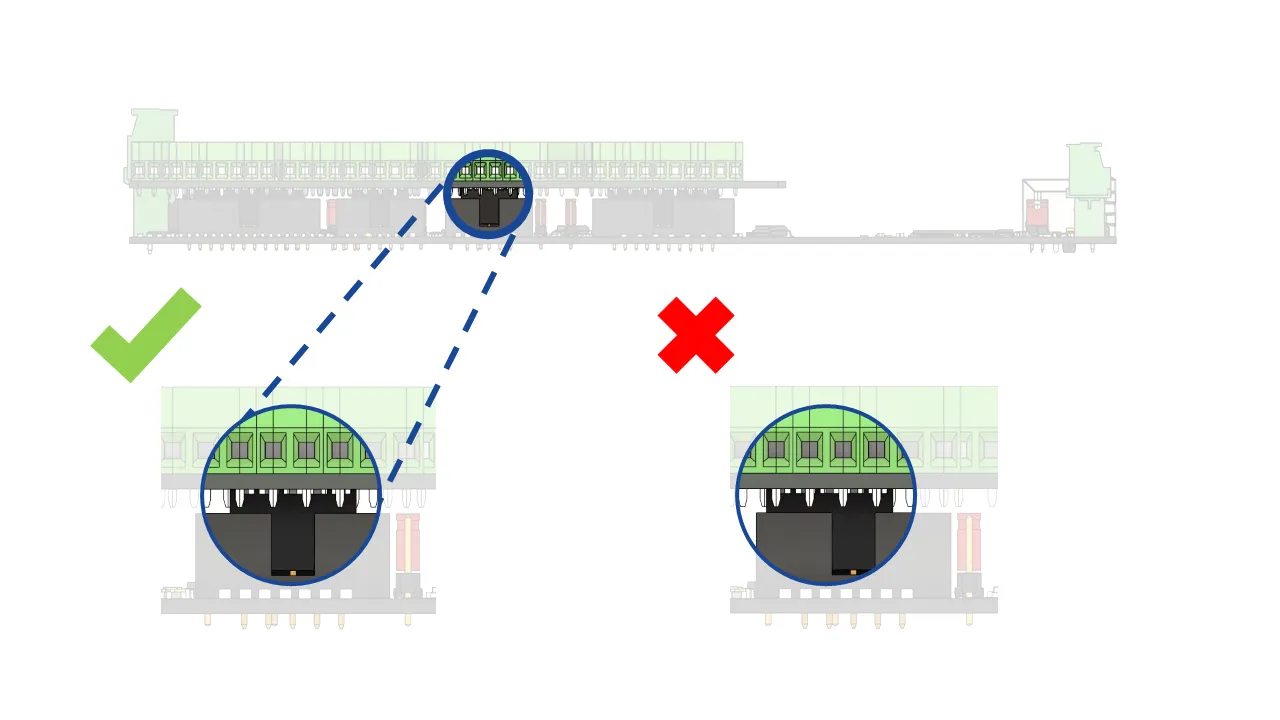

The breakout board must be installed correctly, view the connectors from the side to check the alignment. It is possible to install it with the connectors shifted resulting in incorrect connections that may cause damage to components.
Mind the position of the connector in the socket
Below a video showing how to install breakout boards:
