CNC720 Manual

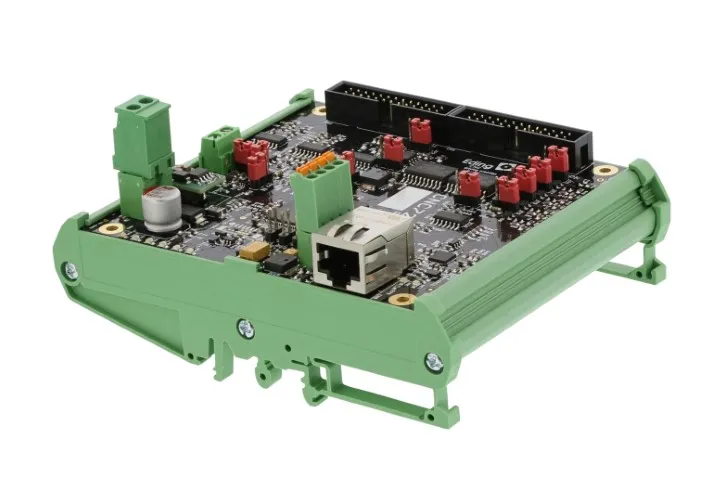

this cnc controller is part of the professional line of eding cnc controllers besides a standard 100mbit ethernet interface, the step frequency increased to 400 khz a high end cnc controller that controls up to 4 axes simultaneously it also includes a hardware shutdown of all the outputs when an ‘e stop’ occurs the board operates on a 24v dc input voltage furthermore, this controller can be extended with extra input and output ports through its rs485 interface the onboard signals make it suitable for many applications besides digital i/o it contains 2 analog inputs, a 0 10v output or pwm output, and a pendant interface this product is fully supported by eding cnc software solution purchase technical specifications 4 axis controller interface step / direction 5v (max 400khz) enable 5v alarm max 24v (pnp or npn) 4x digital home inputs max 24v (pnp or npn) 1x digital output (aux) open collector (max 24v) 1x alarm input max 24v (pnp or npn) 2x analog inputs 0 3 3v (12 bits) 1x analog output 0 10v 2x cooling outputs open collector (max 24v) 1x pwm output open collector (max 24v) safety relay i/o system ready output output for safety relay (watchdog) open collector external error input max 24v (pnp or npn) e stop input max 24v 1x probe max 24v (pnp or npn) 1x spindle encoder input 5v input 1x rs485 interface rs485, modbus compatible (for connection extra i/o or functionality, cable length up to 20m) handwheel interface (pendant) 2x digital input 5v 2x mpg input 5v 2x analog input 0 3 3v interface 100mbit ethernet power supply 24v dc dimensions 100x107mm (suitable for din rail mounting) others firmware upgradable through the network connection controller overview available accessories breakout board if you prefer to use separate wires to hook up your cnc720 this breakout board will help you simply plug this in on top of the cnc720 and start wiring your controller cnc720 breakout board docid\ dpyuqutctk xqozz36zlv purchase din rail mount to easily mount the cnc720 controller on a din rail you can slide it into this housing and simply mount it on the din rail cnc720 din rail mount docid mhst9zlqtq8dxtmdu77n purchase
