Breakout Board

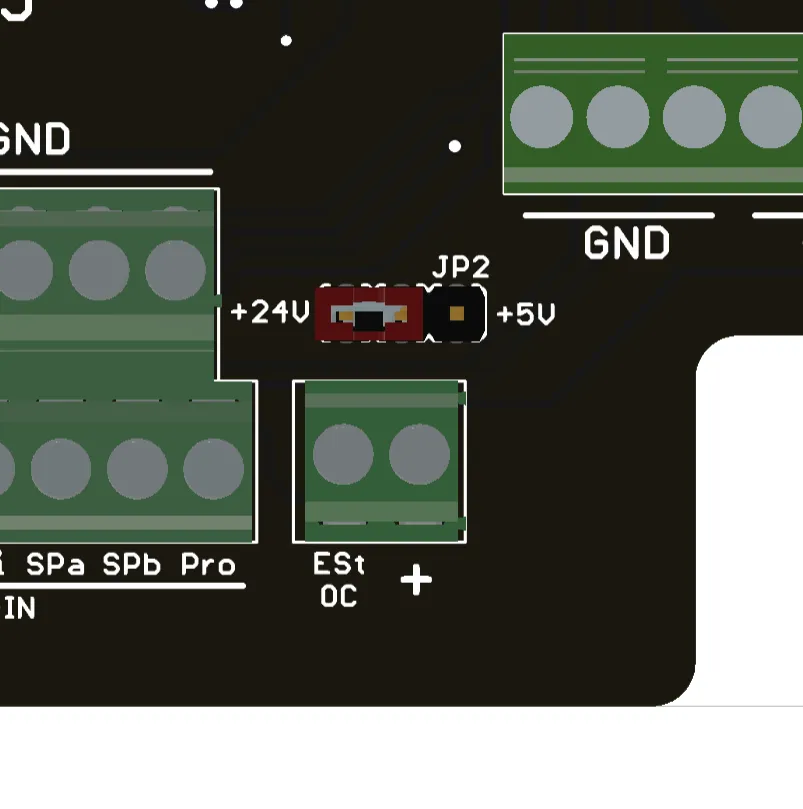

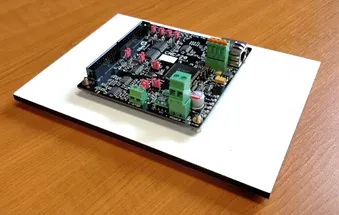

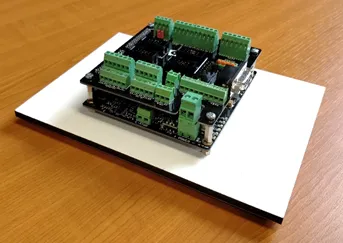

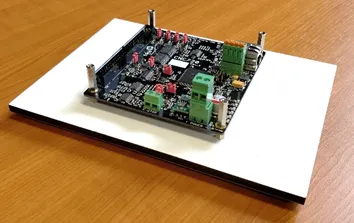

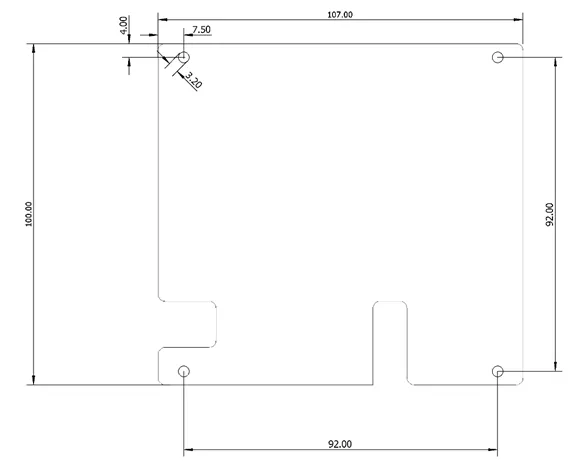

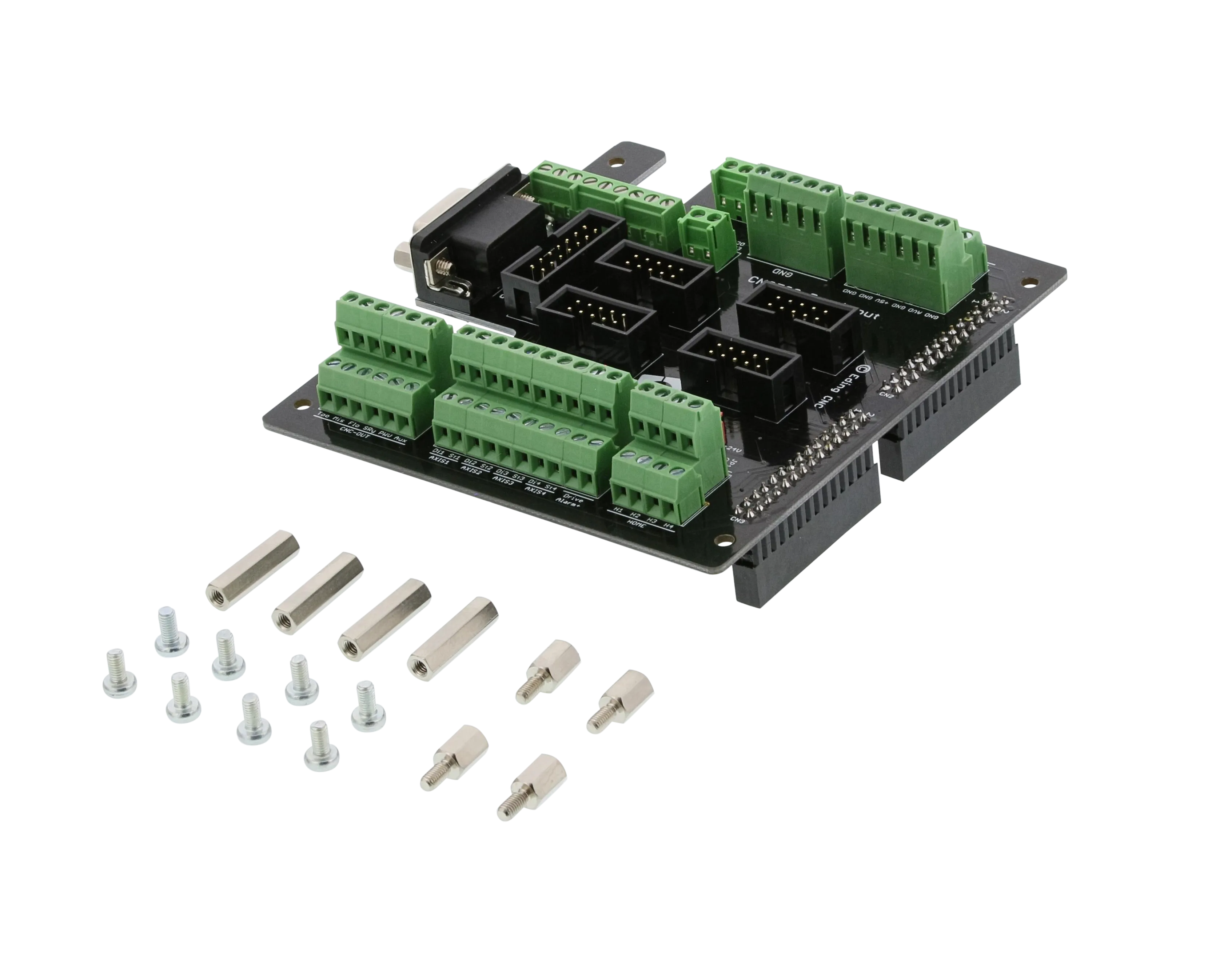

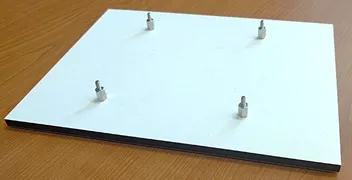

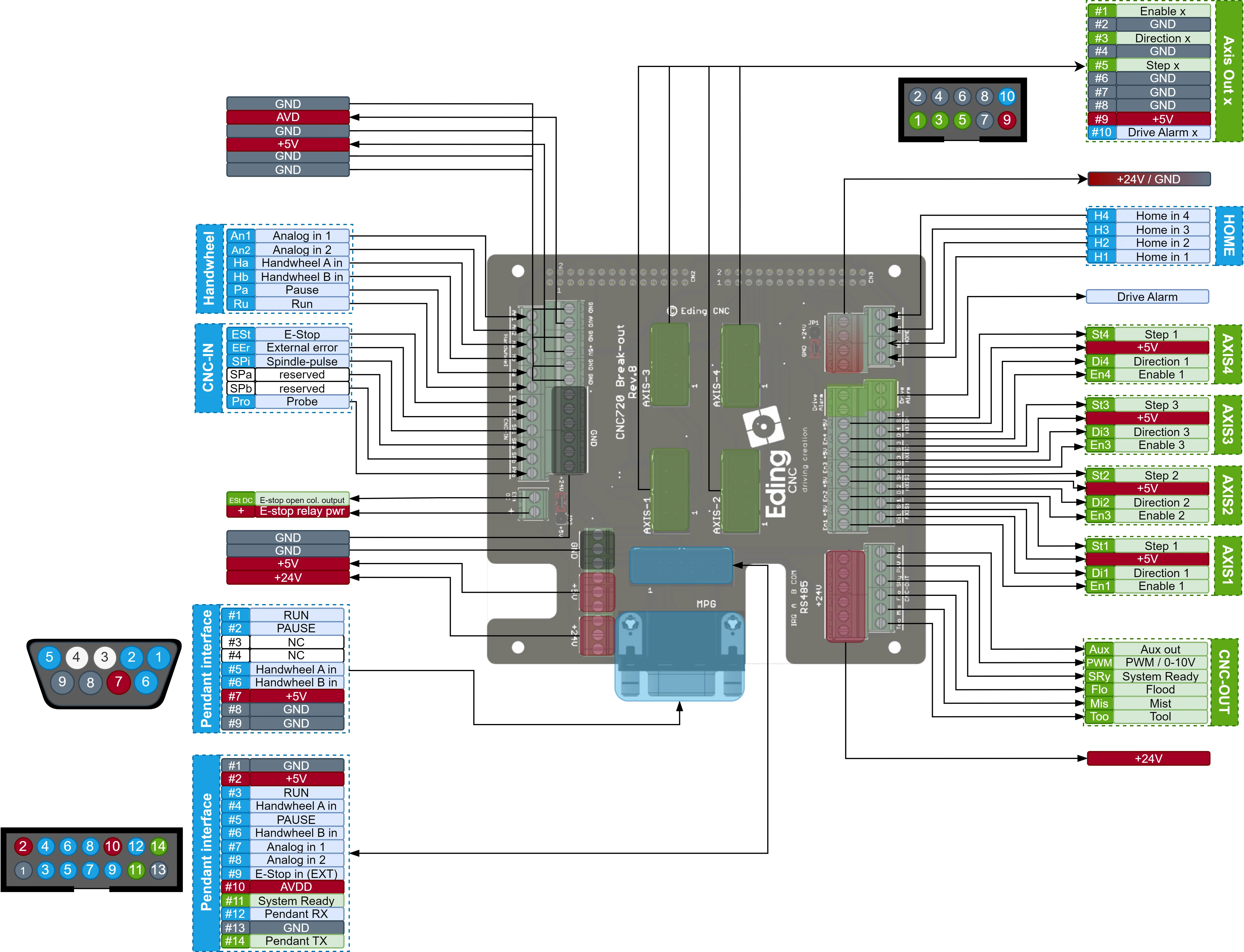

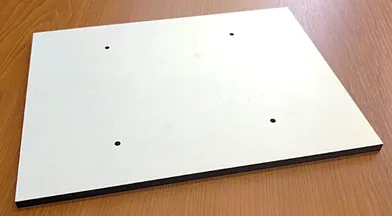

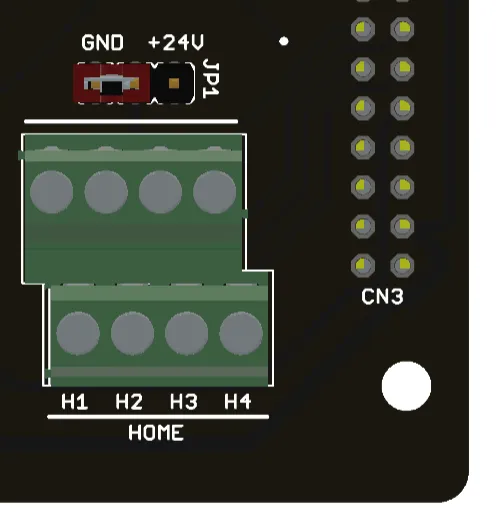

if you prefer to use separate wires to connect your cnc720, this breakout board will help simply plug this into the cnc720 and start wiring your controller https //edingcnc com/product/cnc720 breakout board/ contents each breakout board kit contains the following 1x breakout board cnc720 4x pcb spacer m3x19mm 4x pcb spacer m3x8mm 8x screw m3x6mm overview pin names cnc in handwheel installation the kit contains all the mounting material to mount a cnc720 controller and breakout board 1 create mounting holes the first step is to make holes for mounting the cnc720, the dimensions can be found at the bottom of the page 2 mount bottom spacers 3 mount cnc720 4 mount top spacers 5 mount the breakout board and fix the board with the four m3 screws setup the switch that is used for the home sensor can be connected to gnd or 24v, this can be selected by the jumper on the breakout board the estop open collector output jumper can be set to 5v or 24v, depending on what type of relay you want to use this voltage will be present on the ‘+’ pin board dimensions
