CPU5A4(E) Manual

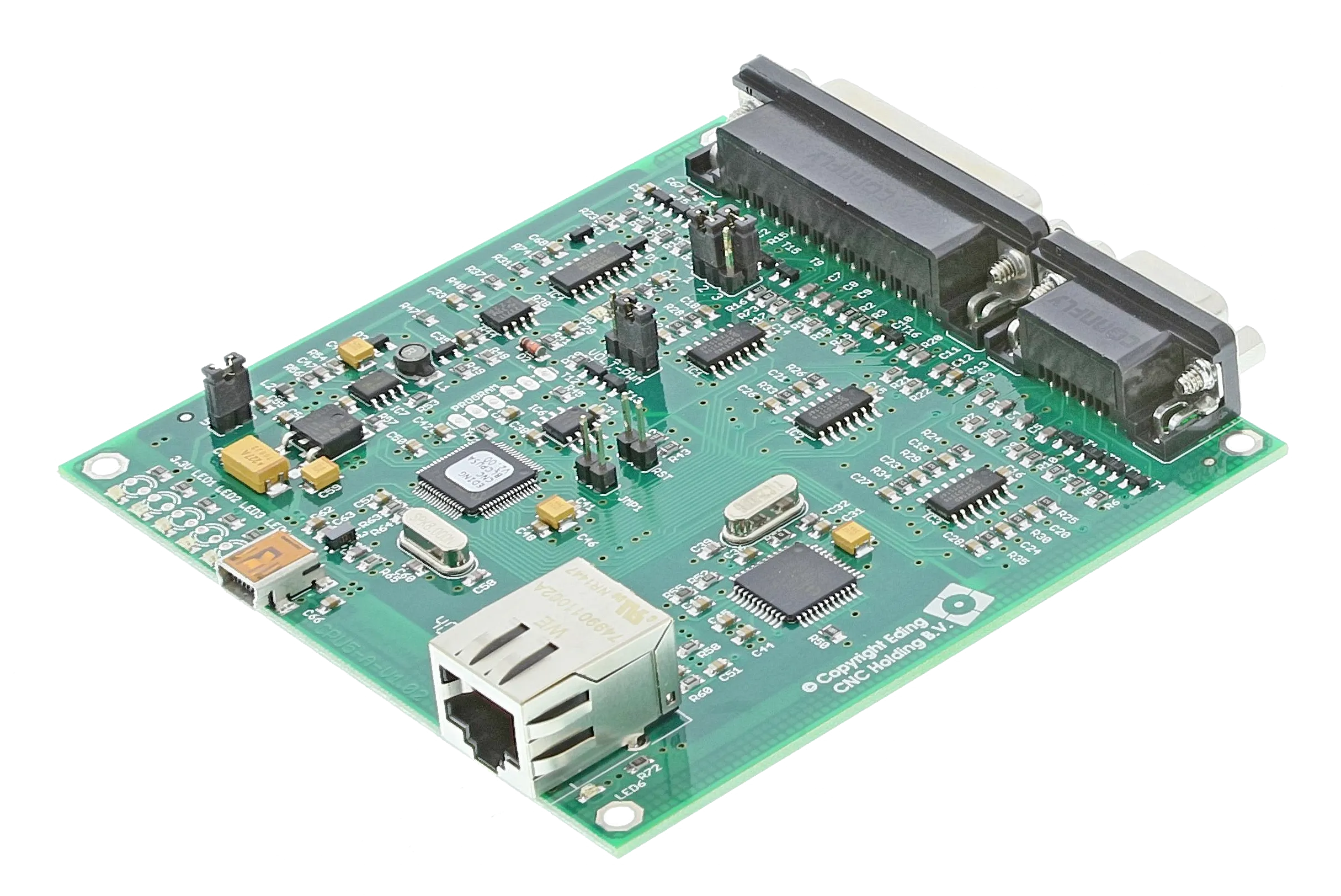

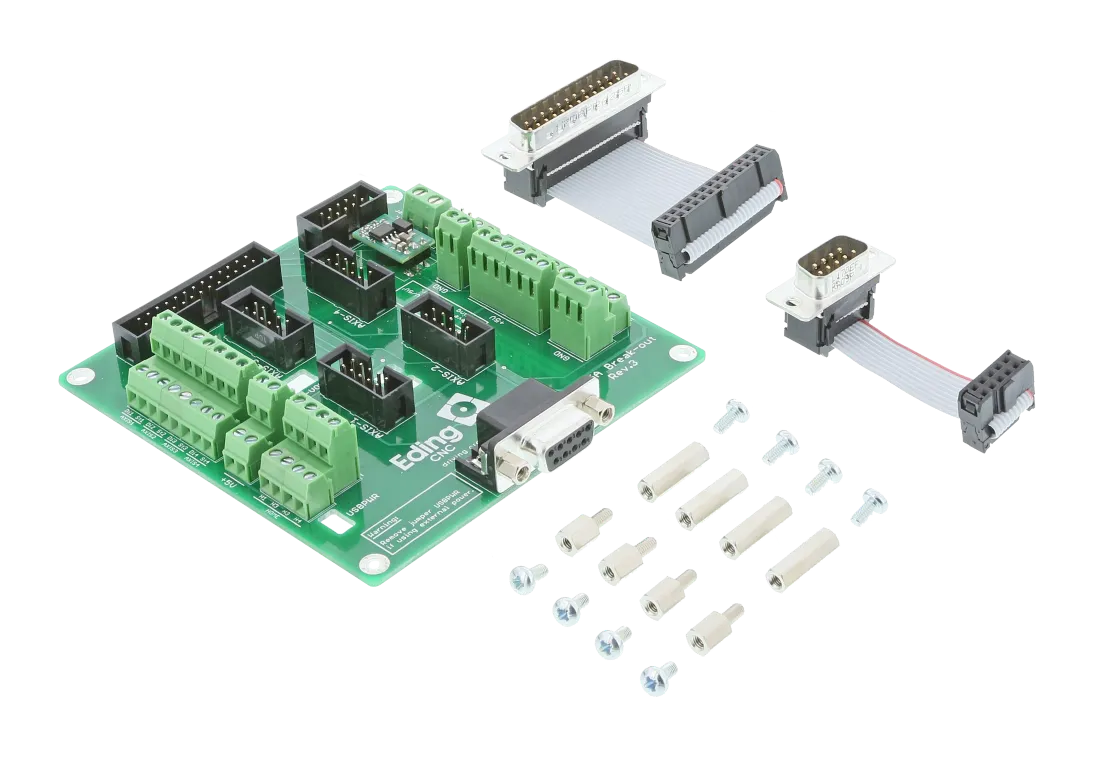

this cnc controller is our most popular controller it offers either a usb (cpu5a4) or ethernet (cpu5a4e) interface, and a step frequency of 125khz per axis connecting something to this board is simple via the sub d connector, all signals are available for you to use making it easy for you to connect your setup to this board although the board might be your first step into cnc, it is fully supported by the software solution from eding cnc giving you all the great benefits of this software solution which is included in the price of the board a great solution at a great price! purchase cpu5a4e purchase cpu5a4 technical specifications 4 axis controller interface step / direction 5v (max 125khz) enable 5v 4x digital home inputs 5v npn 1x digital output (aux) open collector 1x analog output 0 10v 2x cooling outputs open collector 1x pwm output open collector safety relay i/o output system ready open collector input e stop 5v 1x probe 5v input 1x spindle encoder input 5v input handwheel interface (pendant) 2x digital input 5v 1x mpg input 5v interface 100mbit ethernet or usb2 0 power supply 5v dc dimensions 100x100mm others firmware upgradable through the usb connection controller overview overview image available accessories breakout board if you prefer to use separate wires to hook up your cpu5a4(e), this breakout board will help you simply stack this on top of the cpu5a4(e), insert the flat cables, and start wiring your controller
