How to

Add a macro button to Operate view

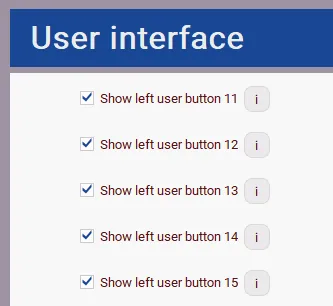

Under "User interface" in setup, section "Display", one can enable user macro buttons 1 through 5 settings.

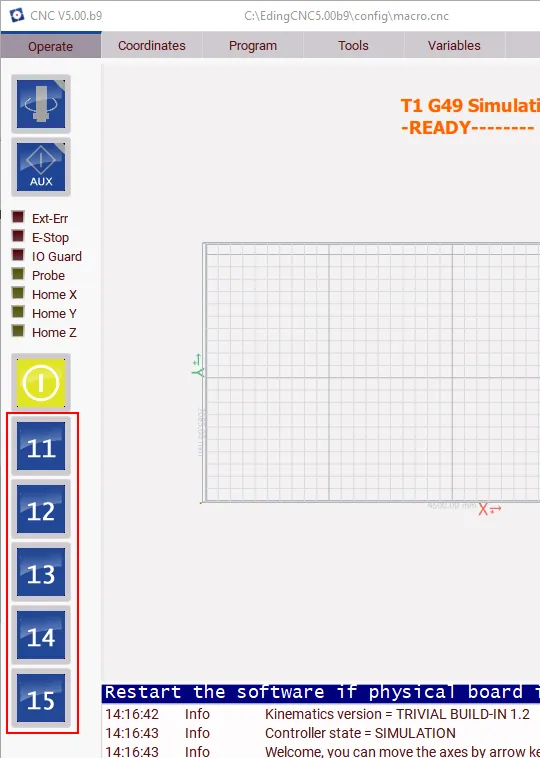

These buttons run macro subroutines user_11 through user_15 from the macro.cnc file.

You can customize these subroutines by editing the macro.cnc file, for example, to run another subroutine, execute G-Code, etc.

Document image

Document image
