How to
Rename an input/output

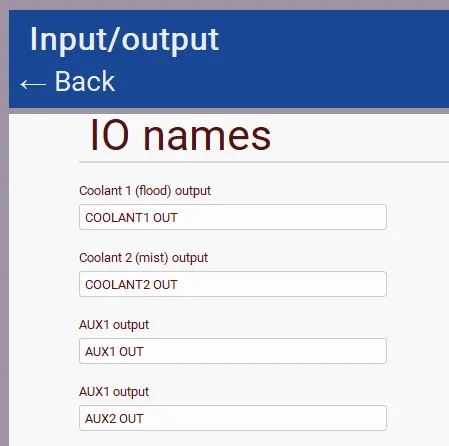

the io names can be customized in the input/output section of the setup note that this only affects the displayed name the macro / g code is not influenced
