Apply configuration to a new installation

Please first ensure that no CNC software is running.

Locate configuration

In order to apply the configuration file, first locate either:

  • configuration from a previous version - this is located in config directory of the installation
  • configuration from your supplier

The system configuration typically consists of at least the following files:

  • cnc.ini
  • server.ini
  • tools.ini
  • service.ini
  • variables.ini
  • macro.cnc

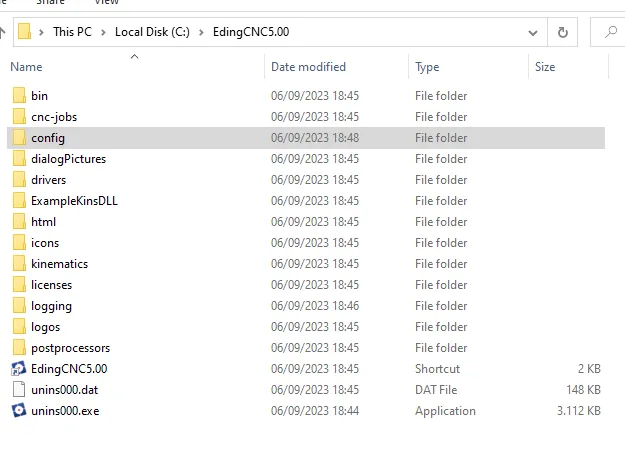

Locate destination

The destination is the config directory of your new installation

Document image


Please refer to one of the following sections next:

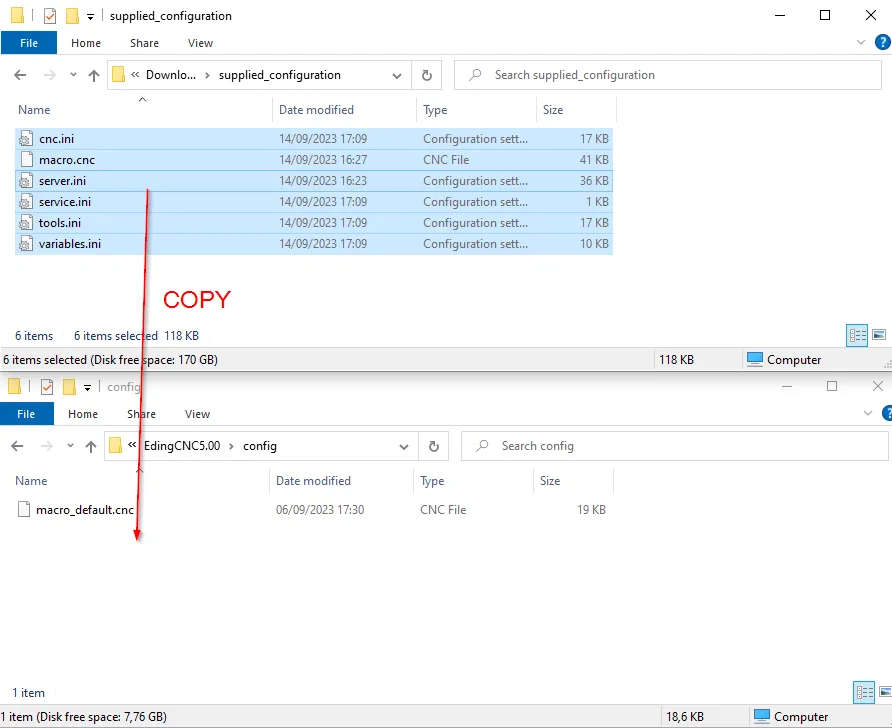

Applying configuration from a supplier

Please copy all supplied files into the config directory of the new installation

Document image

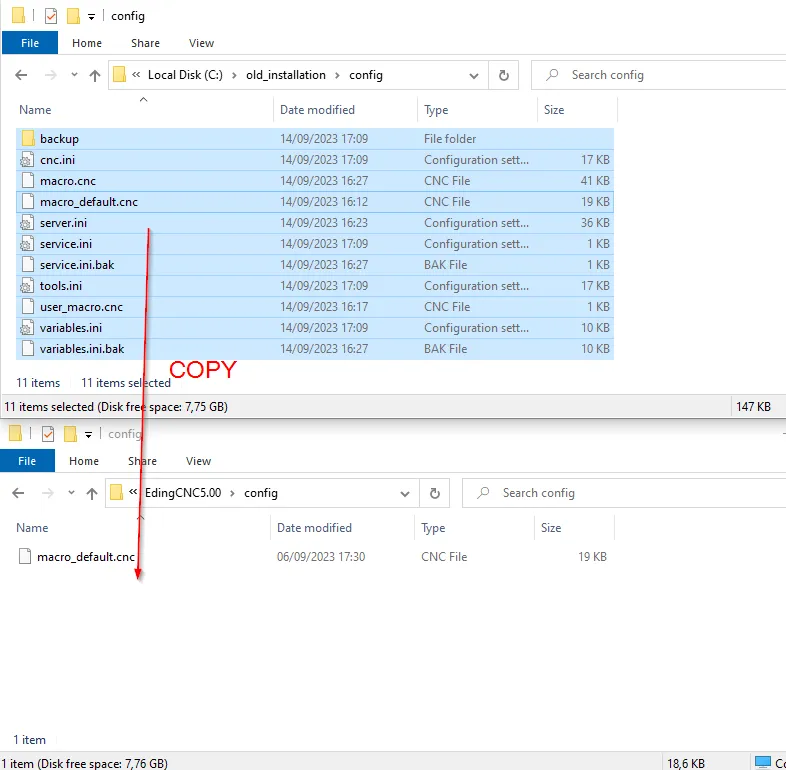

Applying configuration from a previous installation

Please copy all contents of the config directory into the config directory of the new installation

Document image


After the configuration is applied, please start the software again.
