iCNC600 Manual
3min

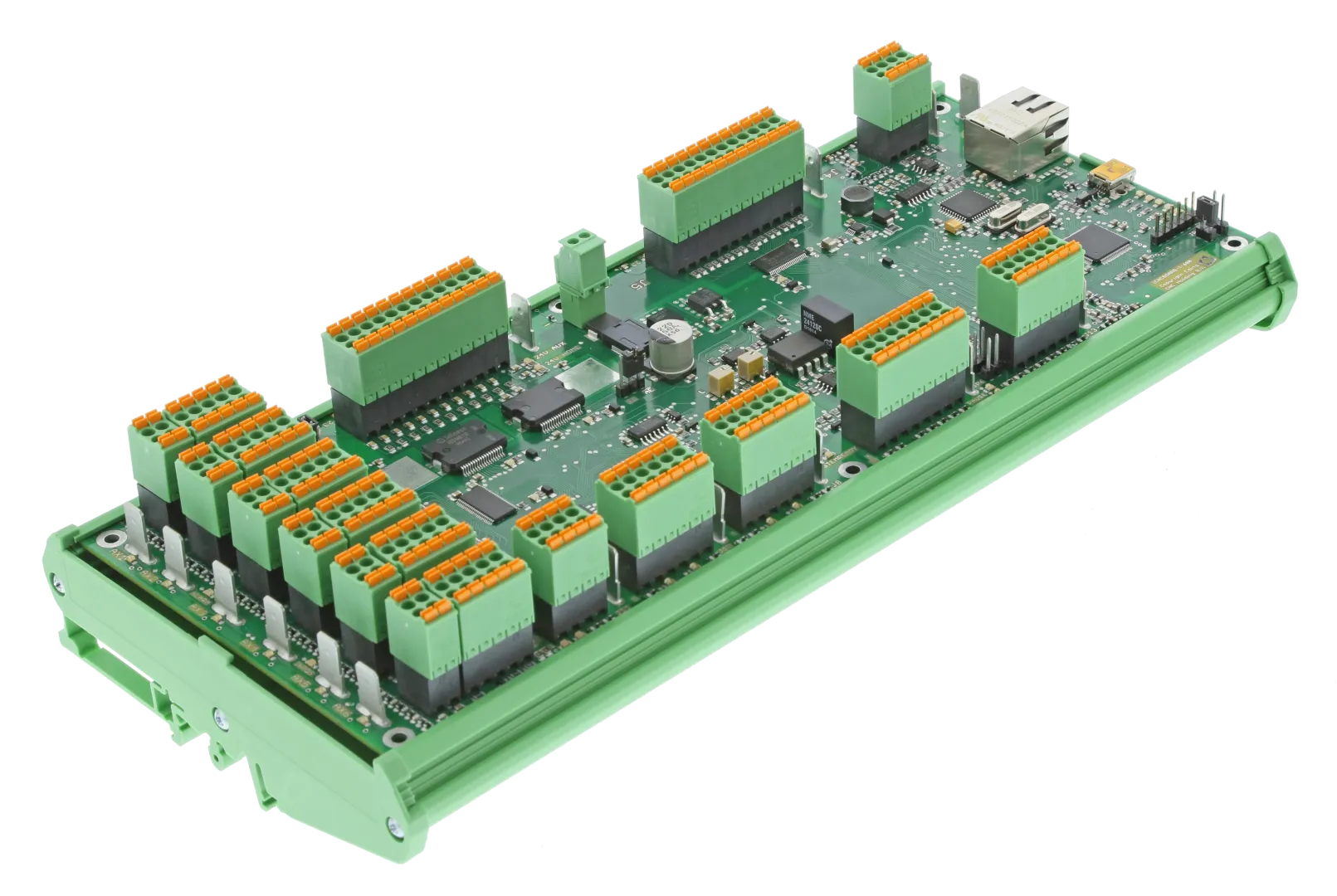

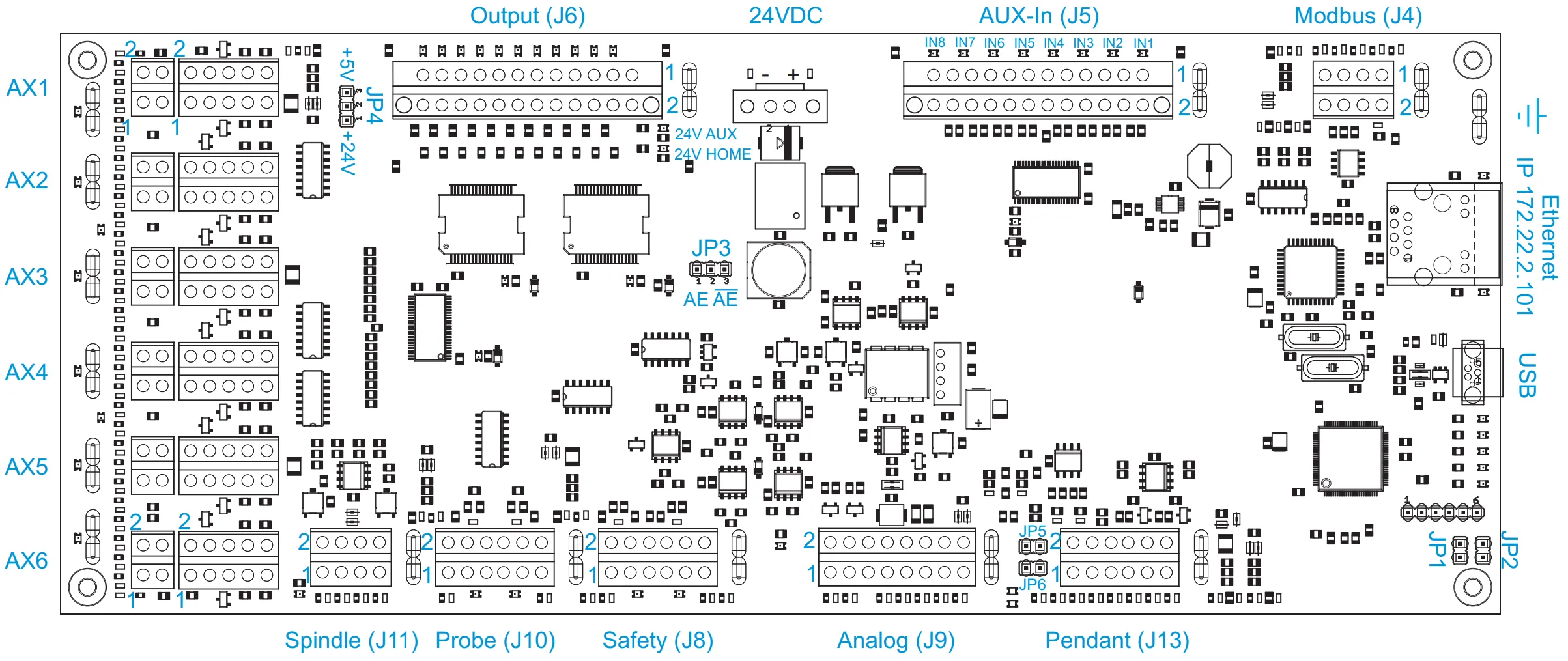

your best choice as a cnc controller for industrial applications while controlling 6 axes simultaneously, this controller is designed with in mind the demanding environment encountered in an industrial installation most i/o has been protected again emc issues, short circuits, etc all connections are made directly to the board, saving you lots of time during installation and maintenance also, it can directly be mounted on a din rail it operates at standard 24vdc and is controlled via a 100mbit ethernet interface with its rs485 modbus interface, more i/o can be added if required and finally, if new firmware is developed it can simply be upgraded in the field with the usb interface this board combined with the extensive eding cnc software solution gives you a solution to the most demanding environment and customer requirements purchase technical specifications 6 axis controller interface step / direction open collector 5v & 24v (max 125khz) enable open collector (max 24v) alarm max 24v 6x digital home inputs max 24v (default pnp or optional npn) 8x digital output (aux) open collector (max 24v) 8x digital inputs (aux) max 24v 5x analog inputs 0 10v (1 galvanically isolated, 2 prepared for pt100 temperature sensors) 2x analog output 0 10v 2x cooling outputs open collector (max 24v) 3x pwm output open collector (max 24v) safety relay i/o system ready output output for safety relay (watchdog) open collector external error input max 24v e stop input max 24v 1x probe max 24v 1x spindle encoder input 5v input 1x rs485 interface rs485, modbus compatible (for connection extra i/o or functionallity, cable length up to 20m) handwheel interface (pendant) 2x digital input 5v 2x mpg input 5v 2x analog input 0 3 3v interface 100mbit ethernet power supply 24v dc dimensions 270x125mm (din rail mounted) other firmware is upgradeable through the usb connection designed for industrial usage (emc/safety), protected with transient voltage protection diodes, galvanic isolated where needed digital inputs have leds for status indication designed for use with industrial safety relay, eg pnoz s3 controller overview
