Industrial Touch Panel PC 17.3"
4 min

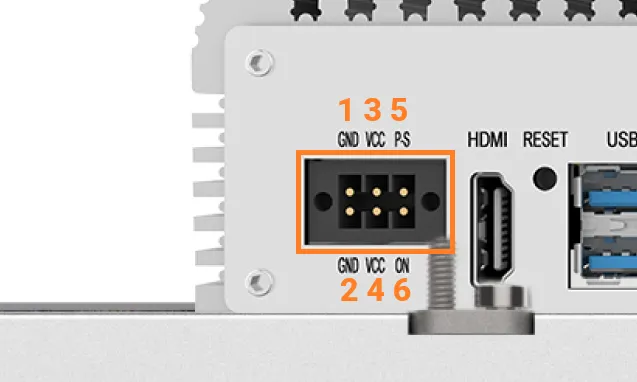

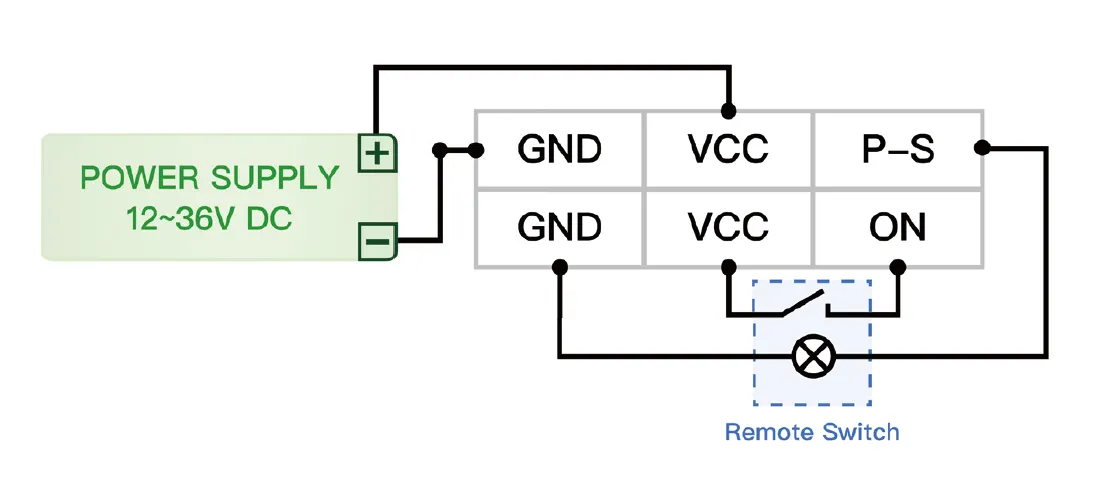

connecting the pc power power is supplied to the pc via the 6 pin connector on the back of the device pin number designation 1 gnd ground terminal 2 gnd ground terminal 3 vcc power (12 36 vdc, 112w) 4 vcc power (12 36 vdc, 112w) 5 p s power status 6 on on button only one pair of ground and power wires needs to be connected to the power supply the other pair can be used to daisy chain other devices that require power the power supply requirements are 12 36 vdc and a minimum power rating of 112w we recommend using a larger power supply, especially when other devices are also connected the power status and the on button can be wired as follows keep in mind that the pc has a power button and an led under the front usb cover, so they do not need to be wired controller most edingcnc controllers are connected via ethernet, and the pc is preconfigured to use the middle ethernet port (labeled "controller") to communicate with the controller when using a usb controller, any usb port on the back of the pc can be used the usb driver is installed during software installation be sure not to unselect this step during installation
